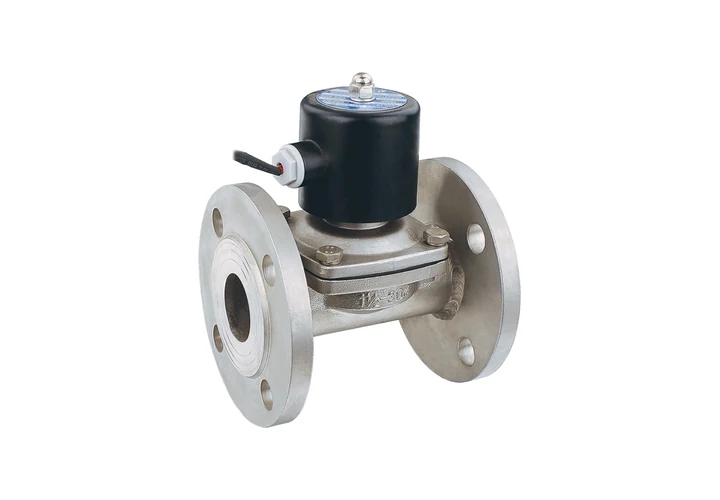

A flanged stainless steel solenoid valve suits fluid lines that cannot take a threaded port: large pipes, joints opened for cleaning, or stainless lines where thread roots invite crevice corrosion. The Kailing 2WBF series is a two-way, direct-acting diaphragm valve with flanged ports from 15 to 50, for pure water, weak acid, weak alkali and mildly corrosive media. Confirm the flange standard, medium, pressure differential, seal material and voltage before ordering.
Why choose a flanged valve instead of a threaded one?
A threaded port is economical up to about one inch. On a larger fluid line a flange becomes practical: the bolts carry the joint load, the connection can be broken and remade without cutting pipe, and the gasket is selected separately from the valve seal. On stainless lines handling weak acids or weak alkalis, a flange also removes the sharp thread roots where pitting begins.
What does the 2WBF range cover?
Model CV Pressure range Coil power Flange OD (D) Bolt circle (D1) Bolt holes --- --- --- --- --- --- --- 2WBF15 4.8 Air 0-1.0 MPa; water 0-0.7 MPa AC 15 W / DC 25 W 95 mm 65 mm 4-14 2WBF20 7.6 Air 0-1.0 MPa; water 0-0.7 MPa AC 15 W / DC 25 W 105 mm 75 mm 4-14 2WBF25 12 Air 0-1.0 MPa; water 0-0.7 MPa AC 15 W / DC 25 W 115 mm 85 mm 4-14 2WBF35 28 Air 0-1.0 MPa; water 0-0.7 MPa AC 20 W / DC 30 W 135 mm 100 mm 4-18 2WBF40 28 Air 0-1.0 MPa; water 0-0.7 MPa AC 20 W / DC 30 W 145 mm 110 mm 4-18 2WBF50 48 Air 0-1.0 MPa; water 0-0.7 MPa AC 20 W / DC 30 W 158 mm 125 mm 4-18 CV steps up with the bore, and coil power rises at 35 and above. The catalog also lists oil 0-0.9 MPa and a normally open figure of 0-0.8 MPa.
Which flange standard and bolt pattern should be confirmed?
The catalog gives flange outside diameter, bolt circle and bolt-hole size, but the flange standard still has to be agreed in writing. Usual references are ISO 7005-1 or EN 1092-1 for PN-rated flanges, ASME B16.5 for Class-rated flanges, and JIS B2220 in some Asian plants. Two flanges can share a bolt circle and still differ in facing or thickness, so send the mating flange drawing.
Which seal material fits the medium?
Seal Media temperature Typical fit --- --- --- NBR -5 C to +80 C Water, air and mildly corrosive fluids EPDM (code E) -10 C to +120 C Hot water, weak alkalis, water-based chemicals VITON (code V) -10 C to +150 C Oils, fuels, acids and higher temperature duty Silicone (option) -15 C to +150 C, 25 mm and below Low-temperature duty, selected food or medical lines Strong chemical service cannot be cleared from a generic table, so send the medium name, concentration and working temperature and let the factory check the body, seal and diaphragm.
How do I read the 2WBF ordering code?
A typical code is 2WBF-25-NO-E-Z-AC220V: 2WBF for the stainless flanged valve, 25 for the size code (15, 20, 25, 35, 40 or 50), blank for normally closed or NO for normally open, then the seal reference (NBR, E, V or SI), the coil or protection option (Z, P, S, A, SW, ES or Z16), and the voltage: AC380V, AC220V, AC110V, AC36V, AC24V, DC220V, DC110V, DC36V, DC24V or DC12V.
Buyer checklist before an RFQ
Item What to state --- --- Medium Name, concentration and normal plus peak temperature Pressure Working differential, not only the peak figure Connection Size code plus mating flange standard, bolt circle and facing Function Normally closed or normally open Seal NBR, EPDM, VITON or silicone, with the reason for the choice Coil AC or DC voltage, frequency and power Install with the pipe ports inclined or horizontal, and keep the coil out of the lowest point of the line. Environment temperature is -5 C to +60 C.
Need a 2WBF quotation for your line?
Send the medium with concentration and temperature, the working pressure differential, the connection size with mating flange standard and bolt circle, normally closed or normally open, the seal preference, the coil voltage and the quantity. A photo of the existing valve speeds up the enquiry.
Frequently Asked Questions
- FAQ What is the difference between 2WB and 2WBF?
2WB is the threaded stainless fluid solenoid valve family and 2WBF is the flanged family. Both are direct acting with a diaphragm valve type; the choice follows the pipework. - FAQ Can a 2WBF valve be quoted without medium details?
No. Medium, concentration, temperature and pressure are needed to confirm the seal material and the corrosion suitability of the stainless body. A quotation based only on size and voltage would not be safe to release. - FAQ What pressure differential does the 2WBF hold?
The catalog lists air 0-1.0 MPa, water 0-0.7 MPa and oil 0-0.9 MPa, with 0-0.8 MPa where a normally open version is used. Check the real working differential in the line.
