2WB500-50 DN50 Solenoid Valve: Water-Treatment RFQ Checks

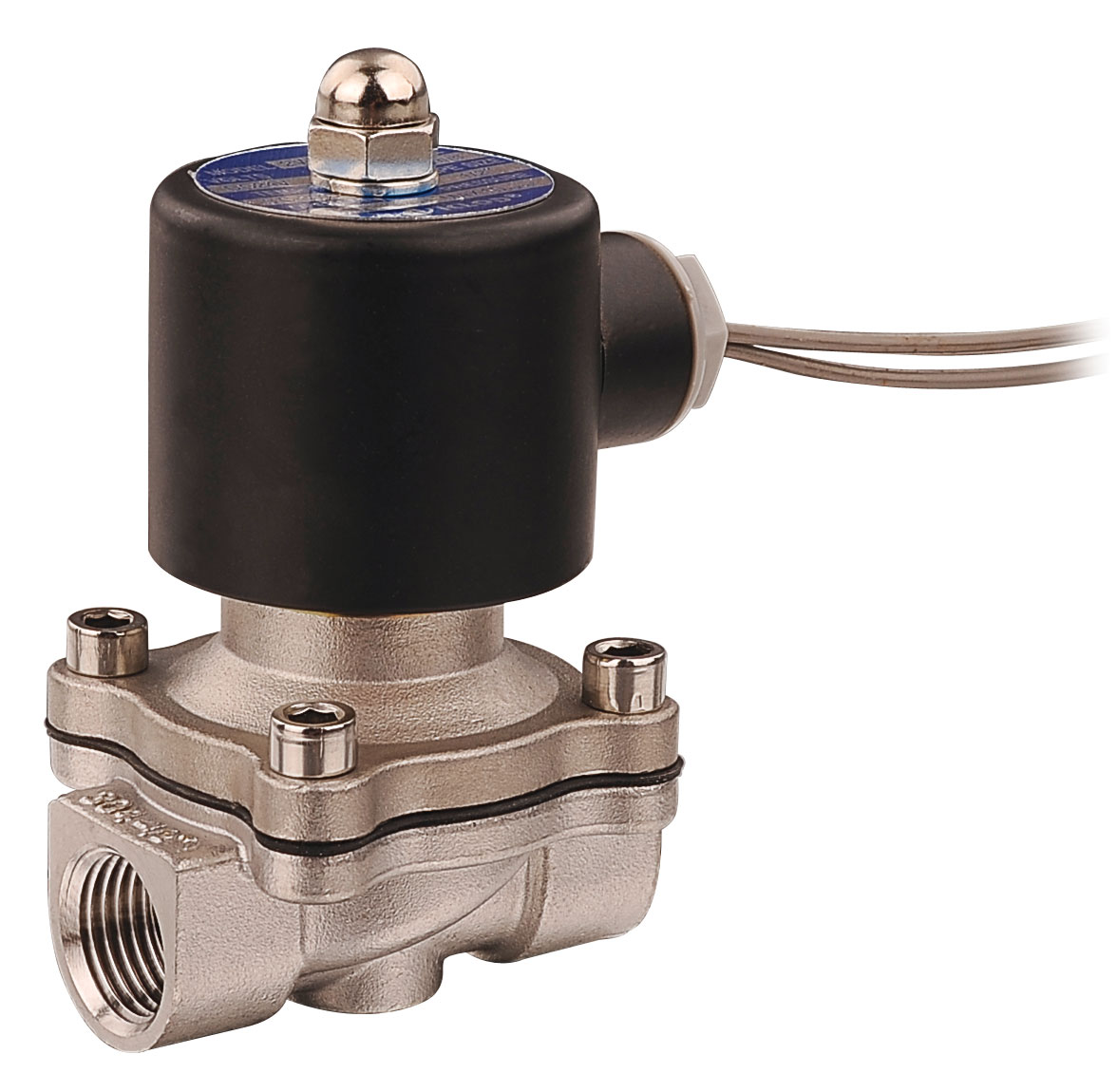

The Kailing 2WB500-50 is a DN50 threaded model in the 2WB series of stainless steel fluid solenoid valves: a 2 inch (DN50, G2) direct-acting diaphragm valve with a 50 mm orifice and CV 48, built for pure water, weak acid, weak alkali and mildly corrosive media. With a 304 stainless steel body (316 on request), a choice of NBR, EPDM, FKM or silicone seals, a 0–0.7 MPa water pressure rating, and AC 220 V or DC 24 V coils as standard, it is a catalog starting point to evaluate for a water-treatment duty. Seawater, brine, chlorine, cleaning fluids and the actual pressure/flow conditions require a configuration-specific review.
This guide explains where a DN50 anti-corrosion water solenoid valve fits in an RO system, where it does not, and the six checks that decide a reliable selection — body material, seal, pressure class, flow, voltage and connection.
Key takeaways
- 2WB500-50 = 2 in (DN50, G2) port, 50 mm orifice, CV 48 — one model in the 2WB threaded stainless fluid-solenoid family; larger threaded models are also listed.
- Direct-acting diaphragm design opens from zero pressure differential; normally closed as standard, normally open available on selected models.
- 304 stainless steel body (316 on request) with NBR, EPDM, FKM or silicone seals.
- Water pressure 0–0.7 MPa; ambient −5…+60 °C; IP65 square coil option (code S), with installation and connector conditions to confirm.
- AC 220 V and DC 24 V coils standard (full range: AC 24/110/220/380 V, DC 12/24/36/110/220 V); threaded G2/NPT connection, flanged 2WBF options for flanged piping.
Key data at a glance
| Parameter | 2WB500-50 |
|---|---|
| Port | G2 (2 in / DN50); G (BSP) or NPT thread |
| Orifice | 50 mm |
| CV value | 48 |
| Action | 2/2-way direct-acting diaphragm |
| Body material | Stainless steel 304 (316 on request) |
| Seal / diaphragm | NBR, EPDM, FKM or silicone |
| Water pressure | 0–0.7 MPa (7 bar) |
| Media temperature | Seal-dependent, see table below |
| Ambient temperature | −5 °C to +60 °C |
| Coil power | AC 28 VA / DC 24 W |
| Reference dimensions | D 166 × C 189 × A 156 mm |
Where a DN50 solenoid valve fits in a seawater RO plant
Identify the exact process stream: intake water, treated water, permeate, brine or cleaning solution. Record normal, peak and transient inlet/outlet pressure and temperature. The catalog water rating is 0–0.7 MPa; it does not prove suitability for every low-pressure stage or any high-pressure RO duty.
Potential duties to describe in the RFQ include intake shutoff, backwash, permeate flush, CIP switching, dosing or draining. Each needs its own fluid compatibility, pressure, flow and operating-sequence review before a model can be accepted.
How to choose a 2 inch stainless steel solenoid valve for RO duty: six checks
Check 1 — Body material: 304 vs 316 stainless steel
Request the actual body grade and complete wetted-material list for the quoted configuration. For seawater, brine or chlorinated water, provide salinity, additives and temperature and request written compatibility evidence. Selecting 316 by name alone does not establish seawater suitability.
One warning belongs in every anti-corrosion valve selection: a stainless body alone does not guarantee chemical suitability. Corrosion resistance depends on the whole wetted path — body, diaphragm and seals — against your exact medium, concentration and temperature. Send the fluid data and confirm the body grade and seal combination for the quoted ordering code before you order.
Check 2 — Seal material decides chemical and temperature life
| Seal | Media temperature | Strengths | Limitations |
|---|---|---|---|
| NBR | −5…+80 °C | Economical, good with oils | Hot-water and ozone ageing; not for oxidizing media |
| EPDM | −10…+120 °C | Confirm the exact water-based medium and temperature | Not for oils and fuels |
| FKM (VITON) | −10…+150 °C | Confirm the exact chemical and concentration | Higher cost; confirm per medium |
| Silicone | −15…+150 °C | Wide temperature band | Confirm availability and limits for DN50 |
The catalog temperature references and seal availability differ by size. Confirm the exact DN50 seal and its operating limits rather than transferring a small-model rating. Supply actual operating and cleaning temperatures and chemistry; do not use a generic RO temperature assumption or seal-material label as acceptance evidence.
Check 3 — Pressure class and the direct-acting advantage
Read the ratings that apply to the exact model: for the 2WB family, 0–0.7 MPa for water (normally closed), 0–0.8 MPa for normally open versions and 0–1.0 MPa for air. Ratings differ by model, medium and size, so always confirm the model row in the current datasheet instead of using the family maximum.
Direct-acting construction matters in RO duty. A direct-acting solenoid valve opens from zero pressure differential, so it works where a pilot-operated valve cannot:
- flush and drain lines that start with no head,
- gravity-fed tanks and siphon lines,
- valves that must open before the pumps build pressure,
- tight sealing at low differential.
The trade-off is coil power: at DN50 the coil draws AC 28 VA / DC 24 W — modest for the flow controlled, but larger than small direct-acting sizes. Check your PLC output or relay budget when many valves switch simultaneously.
Check 4 — Flow: what can CV 48 pass?
CV 48 is the catalogue value for the 2WB500-50. For water, estimate with Q ≈ Kv × √ΔP, where Kv ≈ 0.86 × Cv ≈ 41, Q in m³/h and ΔP in bar:
| Differential pressure | Estimated water flow |
|---|---|
| 0.1 bar | ≈ 13 m³/h |
| 0.2 bar | ≈ 18 m³/h |
| 0.5 bar | ≈ 29 m³/h |
These are engineering estimates for water at ambient temperature, not a guarantee; verify against the current datasheet and your line sizing. Provide the permitted pressure drop and request a model-specific sizing check. Do not select a smaller valve from an assumed price or a universal pressure-drop percentage.
Check 5 — Voltage: 24 VDC or 220 VAC?
Both are standard catalogue coils, so this is a control-system decision:
- DC 24 V — confirm the controller output type, coil rated and startup current, required driver or relay, suppression and wiring. A matching voltage alone does not establish direct PLC-drive compatibility.
- AC 220 V — confirm the actual AC supply, frequency, switching device, cable conditions and coil duty for the installation.
If an IP65 option is required, request the rating and permitted installation conditions for the complete coil, connector and cable assembly. Confirm condensation, cleaning chemicals and washdown exposure separately; a coil IP code is not approval of the whole installation. Check the exact model’s ambient limits and installation drawing.
Check 6 — Connection: threaded G2 or flanged?
The 2WB500-50 is threaded — G2 (BSP) or NPT. If your RO piping is flanged, the 2WBF flanged family is the companion range; review the exact current flanged model table and drawing independently. For a DN50 flanged installation, send the flange standard (e.g. EN 1092-1 or ASME B16.5), pressure class and bolt pattern for confirmation instead of assuming availability.

How to read the ordering code
Example: 2WB500-50-V-S-DC24V-NPT
- 2WB — stainless steel fluid solenoid valve (2WBF = flanged version)
- 500 — 50 mm orifice
- 50 — 2 in port
- V — FKM seal (E = EPDM; other seal codes per quotation)
- S — square IP65 coil
- DC24V — 24 V DC coil (AC220V also available)
- NPT — thread standard (G = BSP)
Frequently asked questions
Q1: Can the 2WB500-50 handle seawater directly? It is a stainless steel solenoid valve catalogued for pure water, weak acid, weak alkali and mildly corrosive media. For seawater, brine or chlorinated water, request written compatibility confirmation covering all wetted materials against your salinity, chlorine level and temperature; do not order from a 316 label alone. Send the medium data first — suitability is confirmed per wetted material, not by body grade alone.
Q2: Can I put it on the RO high-pressure feed line? Do not select it for a duty exceeding the exact model rating. Supply the actual RO pressure, fluid and temperature for review; the 0–0.7 MPa catalog water rating does not establish compatibility with every low-pressure stage or any high-pressure feed line.
Q3: Normally closed or normally open? NC valves shut without power and open when energized; NO valves do the opposite. Define what must happen on power failure — the fail-safe requirement is often the deciding factor — and confirm NO support for the model; NO versions are rated 0–0.8 MPa in the catalogue.
Q4: What flow can the valve pass? CV 48. Using Q ≈ Kv × √ΔP with Kv ≈ 41: about 13 m³/h at 0.1 bar, 18 m³/h at 0.2 bar and 29 m³/h at 0.5 bar differential (water, ambient temperature, estimated). Verify against the datasheet for your duty point.
Q5: Is 24 VDC or 220 VAC better for a desalination plant? Confirm the actual supply, output type, coil rated/startup current, switching device or driver, protection and wiring for the control circuit. Review the complete coil/connector enclosure and permitted installation conditions against the actual environment and cleaning method.
Q6: Do you support OEM or custom versions? Yes. Send the requirement the standard configuration does not meet, with a drawing and operating conditions; custom scope, documentation, sample lead time and commercial terms are confirmed in the quotation.
What to send for a fast quotation
- Medium and concentration (seawater percentage, chlorine, antiscalant)
- Operating and cleaning temperatures
- Minimum and maximum inlet/outlet pressure
- Required flow (m³/h) and line size
- NC or NO, and the required power-failure behaviour
- Connection: G2/NPT thread, or flange standard, class and bolt pattern
- Voltage (e.g. DC 24 V or AC 220 V) and coil protection (IP65 square coil)
- Quantity — then download the current 2WB product PDF and request a model review
Choosing a reliable high-flow stainless steel solenoid valve for a desalination RO system comes down to six confirmations: body grade, seal, pressure class, flow, voltage and connection. Send the duty conditions and the Kailing engineering team will review the exact 2WB model code with you before you order.
Review the 2WB threaded series and model reference and ask the quotation to identify the exact 2WB500-50 drawing revision and configuration.
