How can buyers confirm whether Angle Seat Valves is suitable?

Confirm application, medium, pressure, temperature, voltage, port, material, quantity and delivery timing. Medium, pressure, temperature, port or flange, body material, actuator type, seal and target delivery.

Can Kailing match OEM or special requirements?

Send drawings, sample photos, port details, packaging, MOQ, target market and certificate needs for series-level review.

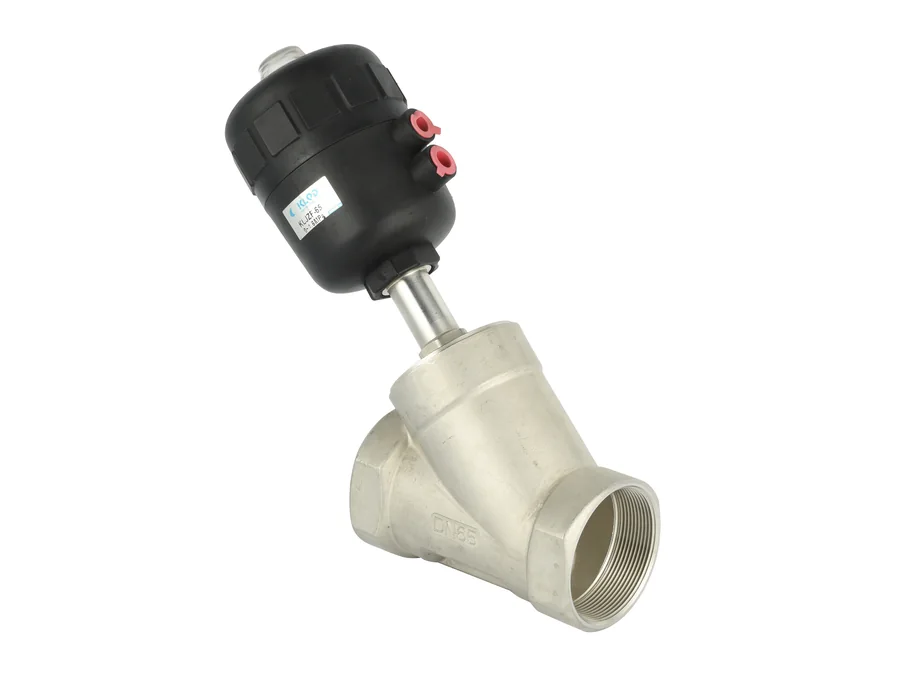

Angle Seat Valves

Angle seat and piston valve options for higher-flow switching in water, steam and process lines.

Send RFQ Products Contact

Series

Threaded, Flanged, Piston valve, Manual option, Steam / water

Applications

Higher-flow switching for water, steam, cleaning lines, filling equipment and process pipelines.

RFQ details

Medium, pressure, temperature, port or flange, body material, actuator type, seal and target delivery.

Parameter shortlist

Model / series: Threaded, flanged, piston valve, manual and pneumatic angle-seat configurations.; Media: Water, steam, cleaning fluids, compressed air and general process lines.; Materials and seals: Stainless steel or brass body options by series; PTFE, EPDM or high-temperature seals by medium.; Voltage / electrical items: Pneumatic actuation is primary; if solenoid pilot control is required, confirm DC 24 V or AC 110/220 V coil.; Pressure range: General review range: 0 to 1.6 MPa, depending on body, actuator size and medium.; Temperature range: General review range: -10 to 180 C when suitable high-temperature seals are selected.

Typical conditions

Filling and washdown lines; Steam or hot-water utility switching; Higher-flow process line control

Selection warnings

Do not treat every angle seat valve as steam-ready; confirm seal and body rating.; Check flow direction and installation position before replacement.; For CIP or cleaning lines, confirm medium concentration and temperature.

Document support

Ask by model for catalog, dimensions, installation method, matching accessories and certificate scope.
