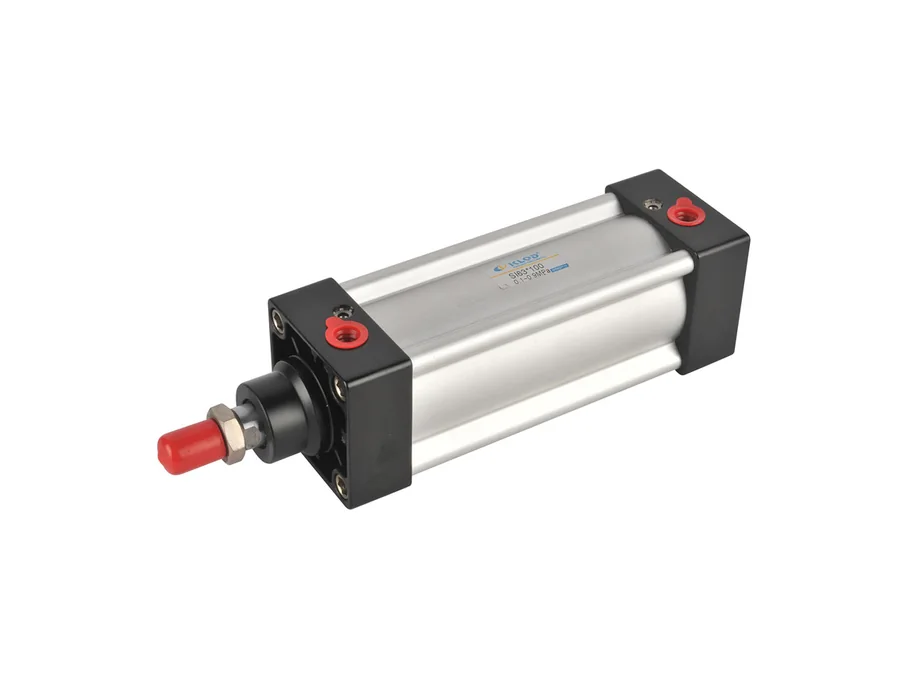

Series
SC, SI / ISO6432, DNC, MA / MAL / DNSU, SDA / TN, Guided / compact
Applications
Linear motion for fixtures, conveyors, clamping, pushing, lifting and automation equipment.
RFQ details
Bore, stroke, mounting style, operating pressure, speed, sensor needs, quantity and delivery timing.
Parameter shortlist
Model / series: SC, SI, DNC, MA, MAL, DNSU, SDA, TN, guided and compact cylinders.; Media: Filtered compressed air for linear motion.; Materials and seals: Aluminum cylinder body, steel or stainless rod, NBR or PU seals by series.; Voltage / electrical items: Cylinder is pneumatic; magnetic sensors or switches require separate voltage and connector confirmation.; Pressure range: General operating range: 0.1 to 1.0 MPa, depending on bore, stroke and load.; Temperature range: General ambient review range: -20 to 80 C.
Typical conditions
Clamping, pushing and lifting; Packaging and conveyor motion; Fixture and machine-side actuation
Selection warnings
Do not choose bore without calculating load and available air pressure.; Long strokes may need guide support or speed control.; Confirm mounting accessories before replacement.
Document support
Ask by model for catalog, dimensions, installation method, matching accessories and certificate scope.
